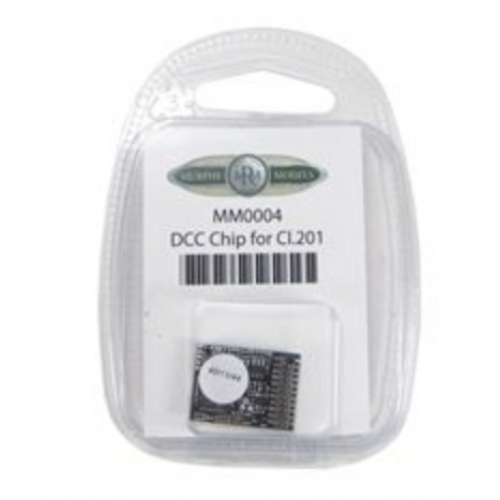

Class 201 Sound Decoder

NO VAT CHARGED TO EIRE & EU COUNTRIES.


Function Key .
F0   Side Lights  (Directional)
F1   Sound On/Off.
F2   Short Horn 1.
F3   Standard Horn 2.
F4   Buffer Clash/Coupling.      (Coupling up only when stationery)
F5   Active Braking.                 CV179 Adjusts Braking intensity
F6   Emergency Braking.          CV180 Adjusts Braking intensity
F7   Drive Lock/Hold.
F8   Automatic Uncoupling.
F9   Flange Squeel.                 (If Moving)
F10 Despatch Whistle.
F11 Wagon Buffer Clash.         (If Moving)
F12 Radio Communications  = Class 071 Only
F13 Station Announcements.   CV155 0-8 Changes Station Names
F14 Roof Fans.
F15 Cab Lights.
F16 HEP (Head End Power)     (Class 201 Only)
F17 Light Load/Light Engine.
F18 Heavy Load                     (Will override F17 'If On').
F19 Head Light.
F20 Train Mode Lighting: (Red Tail Lights 'off' on Class 071 Only).
F21 Not Used.
F22 Wagon Rail Noise             (If Moving).
F23 Loco Coasting.
F24 Not Used.
F25 Rail Noise.
F26 Sanding.

F27 Compressor.



Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Class 201 Sound Decoder (NO VAT TO EIRE)

  • Product Code: Class 201 Sound Decoder
  • £117.50

  • Ex Tax: £97.92

Tags: Class 201 Sound Decoder
