Class 02 – BR/Yorkshire Engine Company 0-4-0 Shunter
21Pin ESU Decoder
***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***
Function List (We suggest you print this off, as you might need it later.).
IMPORTANT:
To alter the overall sounds use CV63 ( 0 to 192 )
To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)
Function List
F0 Lights On/Off (If Fitted)
F1 Engines On/Off. CV259=128 CV419=128
F2 Playable Horn. CV443=128
F3 Playable Horn. CV443=128
F4 Buffer clash(If Moving) Coupling Hook (If Stopped) CV283=128
F5 Manuel Brake (If Moving) Brake Dump (If Stopped) CV291=128
F6 Driver's door slam. CV299=128
F7 Compressor. CV307=128
F8 Drive Hold/Drive Lock.
F9 Flange Squeal . CV323=128
F10 Shunters Whistle CV331=50
F11 Changeable Wagon Sounds (See Notes) CV339=128
F12 Coupling Hook Noises. (Off) CV347=128
F13 Sanders. CV355=30
F14 & F15 Not Used.
F16 Disposal Air Dump. CV379=128
F17 Windscreen Wipers. CV387=70
F18 Speed enabled warning track detonators. CV395=128
F19 Cab Light (With Auto Off) CV427=128
F20 Cab Light (On / Off Only) CV472=128
NOTES:
Manual break severity is set by CV179 (0 to 255)
Changeable Wagon Sounds: CV159=0 Heritage Wagons. CV159=1 Modern Wagons.
This project has been specifically designed for the Heljan 7mm 0 Gauge model.

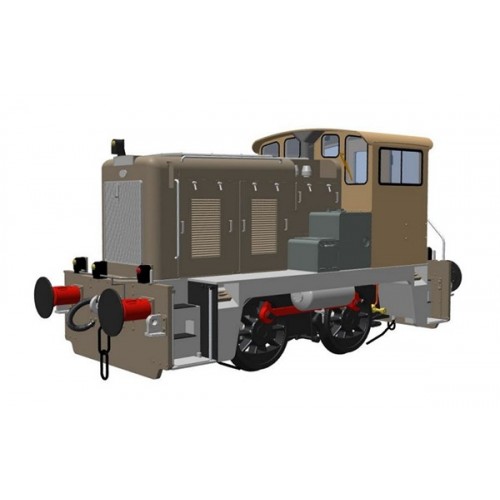

CLASS 02 – 7mm BR/Yorkshire Engine Company 0-4-0 Shunter
- Product Code: Class 02 – 7mm BR/Yorkshire Engine Company 0-4-0 Shunter
-
£118.50
- Ex Tax: £98.75
