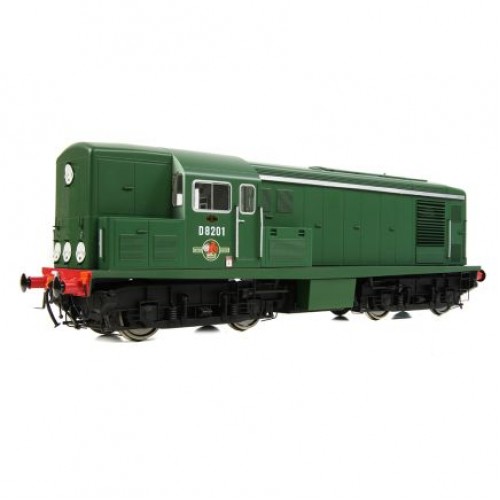

LB-Class 15 (EFE Rail) Plux22 (Ex Little Loco company)......

Plux 22 (Headlight Enabled) ESU Decoder should be fitted into this model


This model has twin speakers pre fitted.

***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

 Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND Sound Decoders.

There are 5 different head code displays on this model, this is unique Legomanbiffo feature.

Light Engine/Empty Stock/Station Pilot.

Stopping Passenger.

Express passenger/Fitted freight.

Parcels/Fish.

Turning F0 on selects Light Engine/Empty stock. Step to the next head code by turning F0 of and back on within 2 seconds. If F0 is turned off, this will switch off all head code lights.

PLEAE NOTE: This model is not fitted with rear red tail lights.

F0 Head Code Light Variations
F1 Engine On/Off.                                                                                         CV259=128   CV419=128
F2 Playable High Note Horn.                                                                      CV435=128
F3 Playable Low Note Horn.                                                                      CV443=128
F4 Buffering Up (If Moving)-Coupling Hook (IF Stationery)                 CV283=80
F5 Brake Application (If Moving)- Brake Dump (If Stationery)          CV291=90
F6 Drivers door Slam.                                                                                 CV299=228
F7 Compressor.                                                                                           CV307=110
F8 Drive Hold (Locks Motor drive to simulate heavy load with throttle).
F9 Variable Speed Flange/Wheel Squeel.                                              CV323=110
F10 Despatch Whistle.                                                                               CV331=128
F11 Not in Use.
F12 Traction Motor Blowers/Fans.                                                           CV347=100
F13 Sanders.                                                                                                 CV355=50
F14 Two speed Exhauster.                                                                        CV363=90
F15 Not Used
F16 Disposal Air Dump.                                                                              CV379=128
F17 Windscreen Wipers.                                                                           CV387=100
F18 Track Detonators (Speed dependant 3 Bang Stop).                    CV395=228 (Flash Enabled)

F19 Cab Lights.                                                                                             CV427=128
