IMPORTANT CHANGES FROM DAPOL:  ALL 2026 VERSIONS ARE NOW PLUX 22 DECODERS, 2021 to 2025 ARE 21PIN

LB-Class 117 Heljan (21Pin Decoder)

Multiple Sound options, see Menu when ordering:

Twin Deluxe:        Includes 2 x Sound Decoders (DMBS+DMS)

Triple Deluxe:      Includes 2 x Sound Decoders & 1 X Programmed Non Sound for Centre car.

Twin Standard:    Includes 1 X Sound Decoder & 1 x Programmed Non Sound Decoder.

Triple Standard:  Includes 1 X Sound Decoder DMBS & 2 X Non Sound Programmed Decoders TCL/DMS

Plus other options on the menu including speakers for upgrades.

Function List 'V5 Decoders' (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.

F 0 Lights On/Off.
F 1 Engines with Multistart (SEE NOTES BELOW).                                                                 CV267=128  CV467=120
F 2 Playable High Note Horn.                                                                                                     CV435=128

F 3 Playable Low Note Horn.                                                                                                      CV443=128
F 4 Buffering Up.                                                                                                                         CV283=90
F 5 Playable Brake Application (when moving), Vacuum Dump (when stationery).            CV291=120
F 6 Random Passengers Doors slamming (Multiple Door Slams).                                       CV299=100
F 7 Engine Rev Up (when stationery),Gear change (when moving).
F 8 DMBS Toilet Flush & Discharge (Not in Stations!!!!).
F 9 Variable Speed Flange/Wheel Squeal (When Moving)                                                     CV323=100
F10 Guards/Despatch Whistle.                                                                                                 CV331=60
F11 Guard to Driver 'Right of Way signal' Buzzer, plus optional reply.                                CV339=40
F12 Cab Window Wipers.                                                                                                          CV347=60
F13 Auxiliary Heater.                                                                                                                 CV355=70
F14 Handbrake ON Warning buzzer.                                                                                        CV363=40
F15 Fire Bell/Buzzer (Fire test before starting).     SEE NOTES                                            CV371=50
F16 Handbrake Apply (On).                                                                                                      CV379=110
F17 Handbrake Release (Off).                                                                                                  CV387=110
F18 Leading Cab Light (IF fitted by user on Aux 3).                                                              CV427=128
F20 Passenger Saloon Lights.                                                                                                 CV475=128
F21 AWS Warning.                                                                                                                     CV411=50
F22 Vacuum Dump.                                                                                                                   CV451=128
F23 Drive Lock/Drive Hold.                                                                                                      CV403=128

F24 Guards Compartment DMBS Light  (IF fitted by user on Aux 4).                                  CV403=128

F25 Rear Cab Light  (IF fitted by user on Aux 3).                                                                   CV419=128

F26, F27, F28 Not Used.

F29 AWS Bell.
F30 AWS Siren.

.......................................................................................................................................................................................

UNIQUE CV CHANGEABLE FEATURES

HORNS:  High Horn   CV155=0 Type A     CV155=1 Type B   CV155=2 Type C  CV155=3 Type D

                Low Horn.   CV156=0 Type A     CV156=1 Type B   CV156=2 Type C  CV156=3 Type D

......................................................................................................................................................................................

FIREBELL/BUZZER : CV157=0 (BELL A)  CV157-1  (BUZZER)  CV157=2 (BELL B)

.....................................................................................................................................................................................

HANDBRAKE:   CV158=0  Brake Type A.   CV158=1 Brake Type B.

.....................................................................................................................................................................................

AUTOMATIC WARNING SYSTEM (AWS)  CV159=0  Type A  CV159=1  Type B  CV159=2  Type C

.................................................................................................................................................................,.

START UP:  On the real units all four of the engines when cold are started manually from the track, this is done by

the driver walking around the train, thus the start up of the engines is staggered.  So we have two options:-

Staggered Engines Start Up is available with: CV161=1      Normal Engine Start Up is pre-Set on CV161=0

You should program  BOTH DMBS & DMA together with CV161=1  (The decoders are Pre-Set at CV161=0 'Normal Start')

On staggered start, when Engine 1 starts, throttle up the, for 3 seconds and back down to 0 down acceleration, then Engine3 will start,

REPEAT this on the Rear car when Engine 2 starts, this will fire up Engine 4,

::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

LB-Class 121 Heljan (21Pin Decoder)

Multiple Sound options, see Menu for all options when ordering:

Function List 'V5 Decoders' (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

F1 Sound On/Off. Start-Up: ( To start second engine - notch up then notch down)

F2 Playable High Note Horn.

F3 Playable Low Note Horn.

F4 Buffering Up when moving (Coupling, sound when stationary).

F5 Active Brake.

F6 Passenger Doors.

F7 Not Used.

F8 Toilet Flush.

F9 Automatic Flange/Wheel Squeal.

F10 Despatch Whistle.

F11 Guard to Driver 'Right of Way signal' Buzzer.

F12 Window Wipers

F13 Aux Heater.

F14 Hand Brake Buzzer.

F15 Fire Bell.

F16 Handbrake On.

F17 Handbrake Off.

F18 Detonators.

F19 Directional Cab Lights

F20 Interior Saloon Lighting On/Off.

F23 Air Dump.
..................................................................................................................................................................................................................

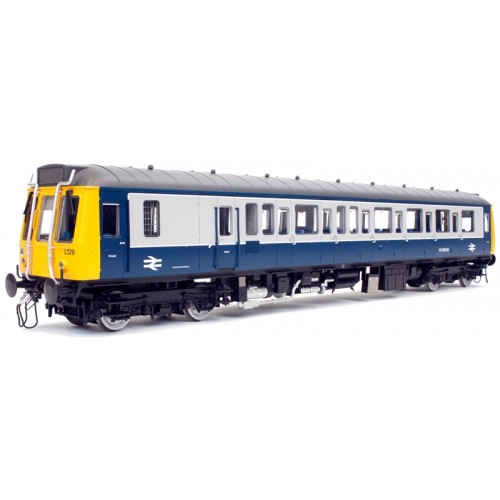

LB-Class 121 Dapol (21Pin Old Model OR Plux 22 on 2026 Version)

Multiple Sound options, see Menu for all options when ordering:

Function List 'V5 Decoders' (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.



F1 Sound On/Off. Start-Up: ( To start second engine - notch up then notch down)

F2 Playable High Note Horn.

F3 Playable Low Note Horn.

F4 Buffering Up when moving (Coupling, sound when stationary).

F5 Active Brake.

F6 Passenger Doors.

F7 Not Used.

F8 Toilet Flush.

F9 Automatic Flange/Wheel Squeal.

F10 Despatch Whistle.

F11 Guard to Driver 'Right of Way signal' Buzzer.

F12 Window Wipers

F13 Aux Heater.

F14 Hand Brake Buzzer.

F15 Fire Bell.

F16 Handbrake On.

F17 Handbrake Off.

F18 Detonators.

F19 Directional Cab Lights

F20 Interior Saloon Lighting On/Off.

F23 Air Dump.

PLEASE NOTE:  The Heljan Model has Speakers fitted, but they are not the best, the twin Bass or Single Bass can be fitted under the model.

The design of the Dapol model re sound fitting is very poor, there is a massive area in the brake van + a socket BUT unless you open the windows on the guards doors the sound cannot get out, this makes the sound waves enter the passenger area and the model rattles with very odd noises.

If you remove the seats, under the circuit board there are 2 X 26mm Speaker 'holes' in the floor, I wired these back to the Brake Van plug. Then covered over them with a lid made from a square of plasticard, with some 3 to 4 mm strips making the sides, all holes (Wires) should be sealed with white PVA of Glue & Glaze, as if this bow is airtight from Inside the model and frog the underneath where the holes are, it will be far louder.

Some of the underside of the seating has to be removed to accommodate this sound chamber. 'BUMP' inside the Dapol model.

On a second one I put 2 X Small Black Speakers on the underside of the unit and lost them within the equipment there, the wires are fed through the speaker holes in the floor and running them back to the plug again.
