LB-Class 08 - Decoder (Legomanbiffo) New MKL Features Added to the 2019 project.

(THIS IS THE FIRST OF TWO COMPLETELY DIFFERENT 7mm / 0 GAUGE PROJECTS)

WHEN ORDERING PLEASE STATE IF YOUR MODEL IS A 2019 VERSION or THE OLDER 2017 VERSION.

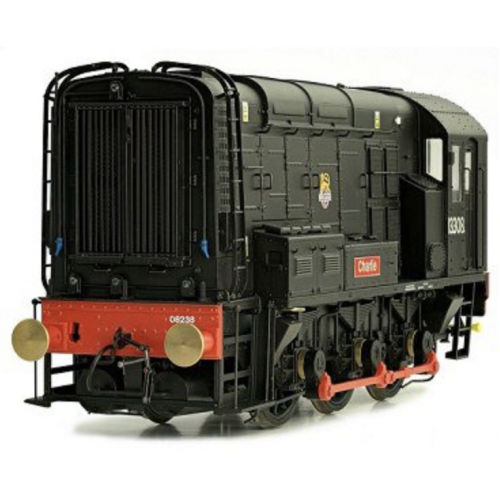

Designed to Enhance your driving experience of your Dapol 7mm Model locomotive, this project features many additional automatic & playable sound:

'DriveLock', Playable Brake Application, AutoFade Cab Light, Randomised Spirax Valves, 5 Different Brake judder sounds, Speed dependant flange squeel, Randomised Coupling & Buffer Clash, Auto Reverser Sounds, Auto Brake Release Sounds & Playable Sanders & Compressor.

 ***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.

F0 Directional Top Directional Marker Light On/Off.

F1 Sound On/Off.  Includes Auto Handbrake Off / On (Note 5)

F2 Playable Whistle. (See Note 1)

F3 Drivers Hand Operated Priming Pump.

F4 Random (2) Buffer Clashes & Random (2) Coupling noises. (See Note 2)

F5 Air Release. (See Note 4)

F6 Drivers door open/close. With options for Steel or Wooden doors. (See Note 1)

F7 Compressor.

F8 Drivelock. (See Note 3)

F9 Automatic Flange/Wheel Squeel.

F10 Guard / Shunters Whistle.

F11 Not Used

F12 Not Used

F13 Sanders

F14 Not Used

F15 Spirax Valve Popping. (When engine is off)

F16 Not Used

F17 Window Wipers.

F18 Detonators

F19 Aux 1 (Autofade Cab Lights)

F20 Aux 2 (Not Used)

Note 1 : By using CV48, you can amend features on the door slams & loco whistle, see below:

Set CV48 to: 0 = Normal Whistle & Wooden Door.  Set CV48 to: 1 = Harsh Whistle & Metal Door.

Set CV40 to: 2 = Normal Whistle & Metal Door.  Set CV48 to 4: = Harsh Whistle & Wooden Door.

Note 2: F4. When moving slowly we have two random automatic  buffer clashes while shunting, when stationery we have two different coupling hook sounds.

Note 3: On F15 we have 'DRIVELOCK' this will lock at any point the vehicles speed and divorce it from the engine sounds.

With F15 ON, you will be able to 'drive' the sound using the throttle to Coast, Notch Up, Notch Down, without affecting the vehicles speed.

When F15 is released the vehicles speed will rise or fall back in line with the throttle settings.

F15 can be turned on and off repeatedly to (For Example) simulate a vehicle getting to grips with a heavy train.

With shunting locomotives F15 is used impressively to make the locomotive 'Work Hard' on moving heavy trains.

Note 4: With F5 switched on, you have when you throttle to 0, a playable brake application noise.

Note 5: With F1 switched on, you have the Handbrake Released & Engine On, With F1 switched off, you have Engine Off an Hand Brake put On.
