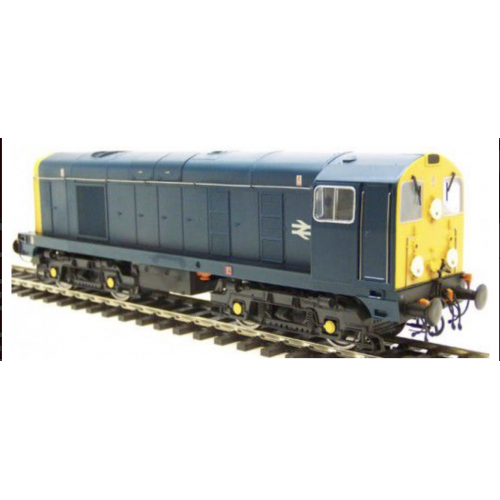

LB-Class 20 Heljan 7mm (New 2022 Version)

We offer the Loksound XL & Bass Speaker as the optimum high power solution for your twin motored model...................

**For modellers on a budget with small layouts & short trains, the LokSound L option is worth considering ** (Speakers not supplied)

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Class 20 Suggested wiring at the bottom of this page:

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.
F0 Directional Lights.
F1 Engine On/Off.
F2 Playable High Note Horn.
F3 Playable Low Note Horn.
F4 Buffer Clash(when moving slow) and two different coupling hook sounds.
F5 Air Release.
F6 Drivers door open/close.
F7 Not Used.
F8 Drive Lock / Drive Hold
F9 Speed Dependant Automatic Flange/Wheel Squeel.
F10 Despatch Whistle.
F11 Not Used.
F12 Radiator Fan.
F13 & F14 Not Used.
F15 Spirax Valves.
F16 & F17 & F18 Not Used.
F19 Aux 1
F20 Aux 2

The only Heljan locos that require any lighting resistors are the original first release class 37 and 47, which were fitted with filament bulbs. Every other loco since those, (to our knowledge) have been fitted with led’s, which have their own resistors built into the circuitry. That’s on the lighting board, not the discarded DCC PCB board. So no resistors are required in either the common V+ feed or the switch feed. Any brightness adjustments are done electronically via the usual CV settings.  If you are uncertain of the age of the model fitting a resistance to V+ will do no harm.

Class 20 Suggested wiring
TRKL Track pickup
TRKR Track pickup
MOT+ Motor
MOT- Motor
FL White side lights
RL White side lights
AUX1 Fan (also engine room Class 60)
AUX2 Red tail lights
AUX3 Red tail lights
AUX4 Cab lights
AUX5 Cab light
AUX6 Side and Head (Class 60)
AUX7 Side and Head (Class 60)
SPK1+ Speaker
SPK1- Speaker
