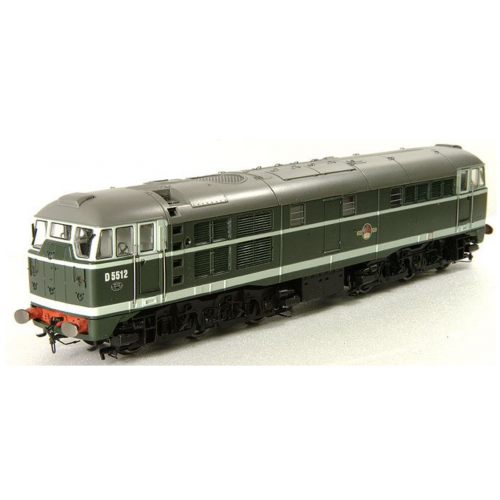

LB-Class 31 Heljan 7mm

We offer the Loksound XL & Bass Speaker as the optimum high power solution for your twin motored model...................

**For modellers on a budget with small layouts & short trains, the LokSound L option is worth considering ** (Speakers not supplied)

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Class 31 Suggested wiring at the bottom of this page:

***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.

WE SUGGEST THAT YOU DOWNLOAD THESE FUNCTIONS ON ORDERING, SAVES LOOKING LATER!

F0 Lights On / Off (New Fade on/Fade off feature enabled)

F1 Sound On/Off.

F2 Playable high horn

F3 Playable low horn

F4 Coupling hook (when stationary) / buffering up (when moving)

F5 Brake dump (when stationary) / playable brake application (when moving)

F6 Drivers door slam (1 of 3 randomised)

F7 Compressor

F8 Drive Hold (DriveLock)

F9 Variable speed flange squeal

F10 Despatch Whistle

F11 Not used

F12 Roof Fan

F13 Sanders

F14 Exhauster

F15 Spirax Valves

F16 & F17 Not Used.

F18 Track Detonators (A speed dependant 3 Bang Stop Warning).

F19 Aux 1 (for cab lights etc)

F20 Aux 2 (for cab lights etc)

The only Heljan locos that require any lighting resistors are the original first release class 37 and 47, which were fitted with filament bulbs. Every other loco since those, (to our knowledge) have been fitted with led’s, which have their own resistors built into the circuitry. That’s on the lighting board, not the discarded DCC PCB board. So no resistors are required in either the common V+ feed or the switch feed. Any brightness adjustments are done electronically via the usual CV settings.  If you are uncertain of the age of the model fitting a resistance to V+ will do no harm.

Class 31 Suggested wiring at the bottom of this page:

TRKL Track pickup

TRKR Track pickup

MOT+ Motor

MOT- Motor

FL White side lights

RL White side lights

AUX1 Fan (also engine room Class 60)

AUX2 Red tail lights

AUX3 Red tail lights

AUX4 Cab lights

AUX5 Cab light

AUX6 Side and Head (Class 60)

AUX7 Side and Head (Class 60)

SPK1+ Speaker

SPK1- Speaker
