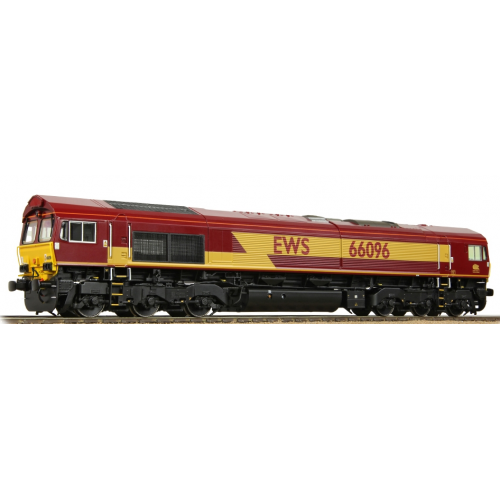

Class 66 NEW BACHMANN'Plux 22' Deluxe with Auto Coupling...

Suitable for ALL versions of the NEW Bachmann model.

ANY QUESTIONS ???  Ask us on :  pacercharlie2@gmail.com

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

The story behind the project:  Recorde

dat Colas, Shrewsbury,   Available on V5 ESU Decoders ONLY.

Function List  (We suggest you print this off, as you might need it later.).

F0 Lights On/Off & Loco Brake Sounds..

F1 Sound On/Off.                                                                                                                                  CV259=128    CV363=128  CV419=50

F2 Playable High Horns.                                                                                                                      CV435=128

F3 Playable Low Horns.                                                                                                                        CV443=128

F4 Random Buffer clash (when moving)/Coupling hook (when stationary).                                      CV283=128

F5 Brake application/auto-brake. Brake dump when stationery).                                                    CV291=80

F6 Driver's door slam. 1 of 3 played at random.                                                                                CV299=128

F7 Compressor.

F8 Drive Lock (Drive Hold)

F9 Automatic flange squeal.                                                                                                                  CV323=128

F10 Guards Despatch whistle.                                                                                                              CV331=128

F11 RETB Token (request & optional reply).                                                                                        CV339=110

F12 Automatic Cooler Group Fans.                                                                                                       CV347=128

F13 Sanders.                                                                                                                                            CV355=128

F14 Engine Room Lights.                                                                                                                       CV411=128

F15 Spirax Valves.                                                                                                                                    CV315=128

F16 Automatic Compressor Speed Up.

F17 Windscreen wash/wiper.                                                                                                                  CV387=128

F18 Detonators. A 'three-bang stop'. (This item is Flash Enabled if fitting LEDs)                        CV395=128

F19 Directional, auto-extinguishing cab light.                                                                                   CV427=128

F20 Train Mode (Disables tail lights & selects train brake sounds).

F21 Parking Mode (Red lights at both ends).

F22 Night Running Mode.                                                                                                                      CV363=110

F23 Yard Mode

F24 Top & Tail, loco at the front.                                                                                                CV451=126

F25 Top & Tail, loco at the rear.                                                               CV403=128

F26 Automatic (Deluxe Fitted) electric coupling.

F27 Battery isolating switch close (Optional) & Cab start up.

F28 Cab shut down & Battery isolating switch open.

F29 AWS 'Clear'.                                                                                                                                         CV467=100

F30 AWS 'Danger'.                                                                                                                                       CV459=70

F31 Drivers safety device 'DSD'

NOTES F5 Brake: Manual brake severity is set by CV179 (0 to 255)

CV Changeable Horns:

CV155=0  Original Horns.

CV155=1  Alternative original Horns.

CV155=2  Later quieter Horns.

CV156=0  Original Spirax Valves.

CV156=1  Euro Style Spirax Valves.



CV Changeable Carriage Door Sounds.

CV157=0  Locos with Priming Pumps.

CV157=1  Locos without Priming Pumps.



'DRIVELOCK' Notes:

On F8 we have 'DRIVELOCK' this will lock at any point the vehicles speed and divorce it from the engine sounds.

With F8 ON, you will be able to 'drive' the sound using the throttle to Coast, Notch Up, Notch Down, without affecting the vehicles speed.

When F8 is released the vehicles speed will rise or fall back in line with the throttle settings.

F8 can be turned on and off repeatedly to (For Example) simulate a vehicle getting to grips with a heavy train.

When shunting or moving off, F8 can be used impressively to make the locomotive 'Work Hard' on moving heavy trains (locking the motor speed and allowing full throttle)

'AUTOFADE' Notes:

This is designed for older style Locomotives that use Bulbs in the Marker & Cab lights, so on turning on (Fade in) or turning off (Fadeout) as per the real train! Modern locomotives use LED Lighting with an instant On/Off.

Cab lighting fitted as standard on this new model, so the 'AUTOFADE' on F14 if enabled will as the vehicle moves off (Turn Off) or when coming to a halt (Turn On) this factory fitted cab light, just listen to the clicking light switch operated by your models driver.
