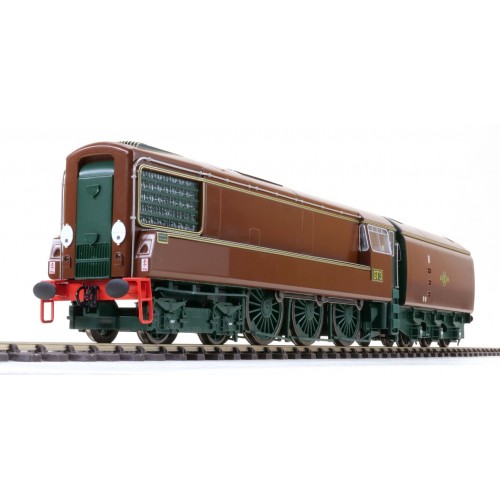

Class GT3 Prototype (KR Models) 21Pin

We are the suppliers of the KR Models Sounds for GT3

 SEE THE MOVIE:

https://www.youtube.com/watch?v=X5DE_-ZTfIs

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key .

F0 Lights On/Off. (If fitted).

F1 Sound On/Off. (Fade Sound while Driving)

F2 Whistle 1

F3 Whistle 2

F4 Uncoupling Sounds / Buffer Clash

F5 Loco Active Brake Application (CV179 Increases/Decreases Brake Application)

F6 Wheel Slip (Not on all Projects).

F7 Injector.  (Latching)

F8 Automatic Uncoupling.

F9 Flange Squeal (Speed Dependant)

F10 Despatch Whistle.

F11 Wagon Buffer Clash & Starting/Stopping noises.

F12 Coal Shovelling On/Off. (Latching + Aux 1 Firebox Glow)

F13 Tender Water Filling.  (Latching)

F14 Safety Valves. (Latching)

F15 Cylinder Drain Cocks On/Off (Works at Low Speed).

F16 Heavy Load Starting Mode. (Latching)

F17 Shunting Mode. (Switch between Light & Heavy chuffs)

F18 Detonators. (Alternate)

F19 Random Sounds On/Off

F20 Aux 2

F21 AWS Bell

F22 AWS Horn (Slows loco down)

F23 Coach Door Slams (Alternate/Latching)

F24 Wheel Tapper (Latching)

F25 Westinghouse Pump (If Fitted on Locomotive)
