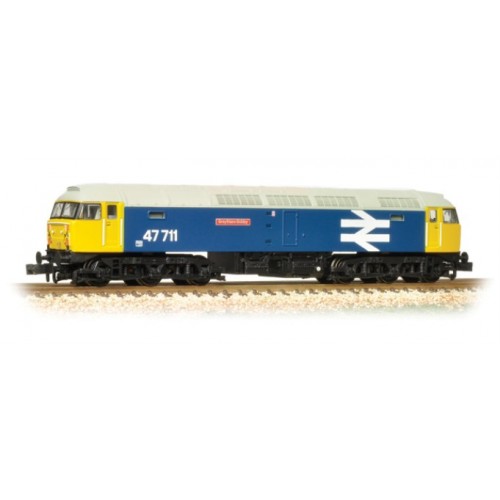

NLB-Class 47/4 Brush Co-Co (6 Pin Micro + Speaker)

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Please note:   ALL Legomanbiffo Projects on N Gauge 6Pin - 8Pin - Next 18 Micro Decoders

F0 Lights On/Off.

F1 Sound On/Off.

F2 Playable Horn.

F3 Playable Horn.

F4 Random Buffer clash (when moving slowly) / Random coupling hook (when stationary)

F5 Brake application / auto-brake.(Pressing whilst stationary will produce the sound of the auto-brake/ brake dump).

F6 Driver's door slam. 1 of 3 played at random.

F7 Bi Directional Compressor. (Different at each end)

F8 Drive Lock (Drive Hold)

F9 Automatic flange squeal. Can be left on all the time and will produce appropriate sounds at any speed right down to / from stationary.

F10 Guards Despatch whistle.

F11 Right away buzzer with Optional Reply (47/4 & 47/7 Loco's)

F12 Radiator Fan.

F13 Sanders.

F14 Not Used.

F15 Spirax Valves.

F16 Mk3 Coach Wail.

F17 Not Used.

F18 Detonators. A 'three-bang stop'. The bangs come closer together as the loco gets faster. (This item is Flash Enabled)

F19 Aux 1 (AutoFade Cab Directional Cab Lights)

F20 Aux 2
