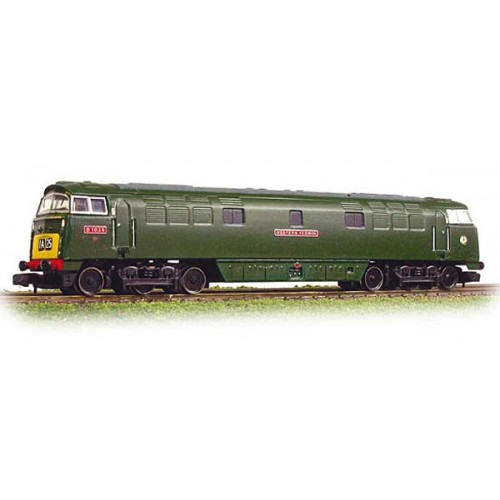

NLB-Class 52 Western

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

F0 Lights On / Off (New Fade on/Fade off feature enabled)

F1 Sound On/Off. (See also Engine Priming Start info below NOTE1 & NOTE2 ).

See Driving Technique Below:

F2 Playable High Note Horn.

F3 Playable Low Note Horn.

F4 Buffer Clash /Buffering Up (When Moving) & Coupling Hook (When Stationery)

F5 Playable Brake Application (When Moving) & Brake Dump (When Stationery).

F6 Drivers door open/close.

F7 Not Used.

F8 Drive Lock (Drive Hold)

F9 Automatic Speed dependant Flange/Wheel Squeel.

F10 Guards Despatch Whistle.

F11 Not Used.

F12 Not Used.

F13 Sanders.

F14 Engine Priming (See info below).

F15 Engine Pre Heaters.

F16 Fuel Pump.

F17 Not Used.

F18 Track Detonators (A speed dependant 3 Bang Stop Warning).

F19 Aux 1. Cab Lights if fitted.

F20 Aux 2.
