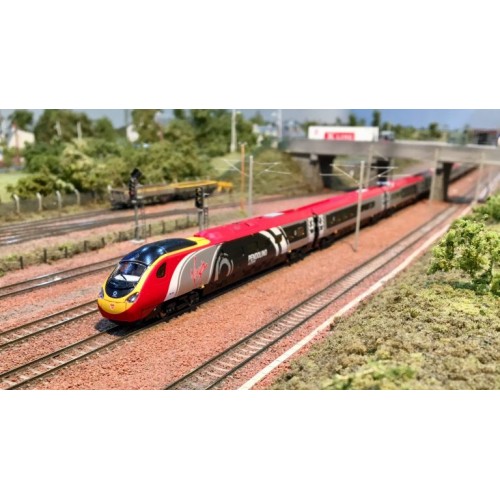

NLB-Class 390 Pendolino (6 Pin OR Next 18 Options)

Please note:

The Revolution Trains model needs a Match Pair of Sound Decoders (Check if Next 18 or the older 6Pin version please)

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

F0 Lights On/Off

F1 Pantograph Raised-Sound On/Off.
F2 Playable High Horn.
F3 Playable Low Horn.
F4 Passenger Doors Open/Close.
F5 Active Brake (When Moving) Brake Test (When Stationery).
F6 Drivers Internal Door Slam.
F7 Compressor.
F8 Windscreen Wash/Wipe.
F9 Automatic random Flange/Wheel Squeel.
F10 Despatch/Guards Whistle.
F11 Guard to Driver 'Right Away' Buzzer.
F12 Unused
F13 Sanders.
F14 Neutral Section.
F15 Selectable Virgin Announcements (See notes below).
F16 Nose door opening & coupling up.
F17 Uncoupling & Nose door closing.
F18 Flash Enabled Detonators (If LEDs are fitted).
F19 Aux 1
F20 Aux 2
F21 Rail Joint Noises.
F22 Drivers Emergency Step ( depoly / retract).

Class 390 Destination Announcements:

To Set destination, select CV155= 0 to 14) this will change your route.

Conductors Voice:

Female Conductor: Select CV156=0
Male conductor:      Select CV156=1
