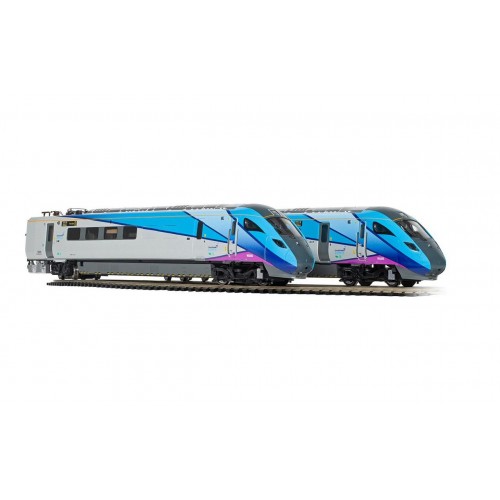

Class 800-802 IET Bi-Modal DEMU (Legomanbiffo)....

A Matched pair is available with 2 sound decoders...

21Pin & 8 Pin Decoders are available,

IE 'One for the Powered Car and One for the Non Powered car'.

This project is designed for the GWR, LNER, Lumo, Trans Pennine, EMR, Avanti West Coast models.
PLEASE ADD IN THE COMMENTS BOX ON THE CHECKOUT WHICH MODEL/LIVERY YOU HAVE.

SEE THE MOVIE:

https://www.youtube.com/watch?v=c8S7_94igVY

This project now has Switchable Diesel or Electric Mode & Passenger announcements.

New This project now has user-selectable IEP announcements.

ANY QUESTIONS ???  Ask us on :  pacercharlie2@gmail.com

 Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.

F0   Lights

F1   Start Up Electric by Default, Diesel if F8 is on.

F2   Playable High Note Horn.

F3   Playable Low Note Horn.

F4   Passenger Doors (Open / Close) Door Indicator Lights (If Fitted).

F5   Manual Brake Application (When Moving) & Brake Dump when Stationery.

F6   Drivers Door Slam.

F7   Compressor.

F8   Diesel Running Mode/Start Up (Can be done on the move).

F9   Automatic Variable Speed Flange Squeal.

F10 Despatch Whistle.

F11 Guard to Driver 'Right of Way' Signal.

F12 Not used.

F13 Sanders.

F14 Nose Door Opening/Automatic Coupling.

F15 Automatic Uncoupling/Nose Door Closing.

F16 Configurable Passenger Announcements.

F17 WindScreen Wash/Wipe.

F18 Speed Dependant Detonators.

F19 Aux 1 (Cab Light if fitted)

F20 Aux 2

F17 IEP announcements as follows:

Destination is set by CV155 as follows;

CV155 = 1: Please do not leave luggage on any train or Station.

CV155 = 2: Smoking is not permitted on any Train or Station.

CV155 = 3: This is an important safety announcement, please evacuate the train.
