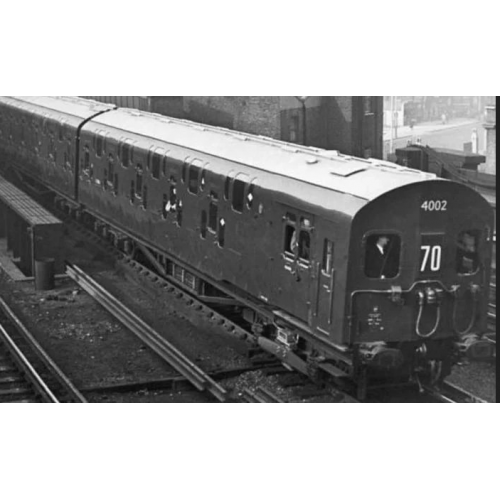

Class 4DD Southern 'Double Decker 4 Car EMU.......

(Legomanbiffo project).........

V5 Decoders & Speaker Kit: Please note: The new Speaker has an multisize sound enclosure, this should be built up and made 'Airtight'. This speaker will not work correctly without this sound enclosure, and our quality sounds will be impaired.  Other larger speakers are available.

***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

F0 Directional Lights
F1 Sound On/Off                                             CV259 - (0 to 128)  CV411 - (0 to 128)  CV419 - (0 to 128)
F2 Playable high horn                                   CV 435 - (0 to 128)
F3 Playable low horn                                    CV 443 - (0 to 128)
F4 Buffer clash (when moving slowly)     CV283 - (0 to 128)
F4 Coupling hook (when stationary)         CV283 - (0 to 128)
F5 Brake application (when moving)        CV291 - (0 to 50)
F5 Brake dump (when stationary)             CV291 - (0 to 50)
F6 Passenger door slams                           CV299 - (0 to 100)
F7 Compressor                                              CV307 - (0 to 60)
F8 Toilet Pipe Discharge                              CV315 - (0 to 128)
F9 Variable speed flange squeal               CV323 - (0 to 128)
F10 Despatch whistle                                  CV331 - (0 to 80)
F11 Guard to driver 'right away' signal    CV339 - (0 to 50)
F12 Windscreen Wipers.
F13 Not Used
F14 Not Used
F15 Spirax Valves                                        CV371 - (0 to 128)
F16 Southern Region whistle                    CV379 - (0 to 128)
F17 Windscreen Wipers                            CV 387 - (0 to 90)
F18 Detonators 'a three bang stop’         CV 395 - (0 to 128)
F19 Interior Lights On/Off                           CV 427 - (0 to 128)
F20 Aux 2 (Third rail Flash, If fitted))
