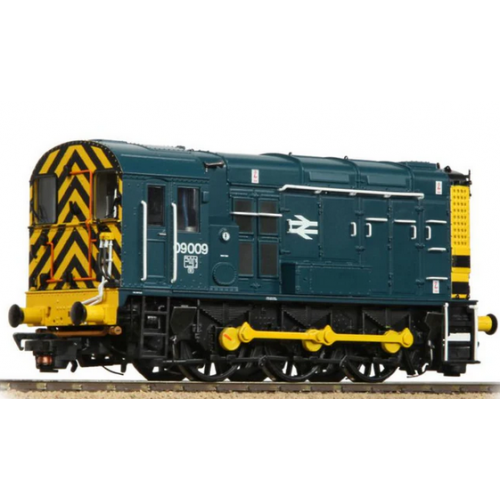

Class 08 / 09 / 11 BR & SR Shunter..
NEW Bachmann Plux22, 8Pin Hornby/Bachmann, Class 11(Heljan).
....LEGOMANBIFFO UPGRADED PROJECT.........
We suggest the Plux 22 for the NEW Bachmann Class 08 & 09 Models, for the Hornby & Old Bachmann, we suggest the Micro 8Pin for its is a tight fit, but on some of the older Hornby locos, these were supplied with a 21Pin.
Decoders & Speaker Kit: Please note: The new Speaker has an multisize sound enclosure, this should be built up and made 'Airtight'. This speaker will not work correctly without this sound enclosure, and our quality sounds will be impaired. Other larger speaker options are available.
The story behind the project: Class 08 Recorded at Eastleigh, Available on V4 & V5 ESU Decoders.
Function List (We suggest you print this off, as you might need it later.).
IMPORTANT:
To alter the overall sounds use CV63 ( 0 to 192 )
To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)
ANY QUESTIONS ??? Ask us on : pacercharlie2@gmail.com
Function Key Layout for ESU/LOKSOUND Decoders.
NEW Bachmann Plux 22 (New Enhanced Project with new features)
F0 Light Engine Mode.
F1 Engines On. CV259=128 CV419=128
F2 Playable Whistle (CV155=0 See Below) -Horn (CV155=3 See Below). CV443=128
F3 BIS & Manual Priming. CV435=60
F4 Buffer Clash on slow speed / Coupling hook sounds when stationery. CV283=128
F5 Manual Brake (moving) & Brake Dump (if stopped) CV291=90
F6 Driver's door slam. (Wood Door CV156=0 or Metal Door CV156=1) CV299=128
F7 Compressor. CV307=90
F8 Drive Hold (DriveLock).
F9 Automatic Speed dependant Flange/Wheel Squeel. CV323=128
F10 Despatch whistle. CV331=110
F11 Shunting Lights (Over-rides other settings).
F12 Coupling hook off. CV451=128
F13 Sanders. CV355=50
F14 Cab Lights. CV427=80
F15 Spirax Valves. CV315=90
F16 Disposal Air Dump. CV379=128
F17 Windscreen Wipers. CV387=70
F18 Track Detonators (A speed dependant 3 Bang Stop Warning). CV395=128
F19 Train Mode Lights: Lights at Radiator End)
F20 Train Mode Lights: Lights at Cab End
F21-F22 & F23 Not Used.
F24 Mk1, Mk2 or Mk3 Coach Door Slams (NEW FEATURE). CV459=128
F25 Roof Hatch Open/Close. CV347=100
F26 Wagon Sounds (Heritage or Modern set by CV5 / CV159). CV467=128
F27 Automatic Bachmann coupling. CV275=0
F28 Not Used.
F29 AWS Bell. CV483=100
F30 AWS Horn. CV491=70
.............................................................................................................................................................................................
CV Changeable Horns:
CV155=0 Whistle A. CV155=2 Harsh Whistle.
CV155=1 Whistle B. (Default Whistle). CV155=3 Air Horn.
CV Changeable Cab Door Sounds:
CV156=0 Wooden Doors (Default). CV156=1 Metal Doors.
CV Changeable Carriage Doors Sounds.
CV157 = 0 Mk 1 Doors. CV157=1 Mk2 Doors. CV157=2 Mk3 Doors.
CV Changeable Brake Functions:
CV158=0 To enable parking brake functionality (default).
CV158=1 To disable parking brake functionality.
CV Changeable Wagon Clanking/noises.
CV159=0 Short Wheelbase Heritage wagons,
CV158=1 Long Wheelbase Modern wagons.
...................................................................................................................................................................................................................
Old 8 Pin Hornby/Bachmann, Heljan Class 11.
F0 Light Engine Mode.
F1 Engines On. CV259=128 CV419=90
F2 Playable Whistle-Horn. CV443=128
F3 BIS & Manual Priming. CV435=60
F4 Buffer Clash on slow speed / Coupling hook sounds when stationery. CV283=128
F5 Manual Brake (moving) & Brake Dump (if stopped) CV291=90
F6 Driver's door slam. (Wood or Metal) CV299=128
F7 Compressor. CV307=90
F8 Drive Hold (DriveLock).
F9 Automatic Speed dependant Flange/Wheel Squeel. CV323=128
F10 Despatch whistle. CV331=128
F11 Roof Hatch. CV347=100
F12 Coupling hook off. CV451=128
F13 Wheel/Track Sanders. CV355=50
F14 Wagon sounds (Heritage or Modern) CV467=128
F15 Spirax Valves. CV315=90
F16 Disposal Air Dump. CV379=128
F17 Windscreen Wipers. CV387=70
F18 Track Detonators (A speed dependant 3 Bang Stop Warning) Aux 3 & 4 for LED Flash. CV395=128
F19 Cab Light (If Fitted) Aux 1 CV427=80
F20 Rotary Warning Beacon (If Fitted) Aux 2
F21-F22 & F23 Not Used.
F24 Mk1, Mk2 or Mk3 Coach Door Slams (NEW FEATURE) CV459=128
F25-F26-F27-F28 Not Used.
F29 AWS Bell. CV483=100
F30 AWS Horn. CV491=70
.............................................................................................................................................................................................
CV Changeable Horns:
CV155=0 Whistle A. CV155=2 Harsh Whistle.
CV155=1 Whistle B. CV155=3 Air Horn.
CV Changeable Carriage Doors Sounds.
CV157 = 0 Mk 1 Doors. CV157=1 Mk2 Doors. CV157=2 Mk3 Doors.
CV Changeable Wagon Clanking/noises.
CV159=0 Short Wheelbase Heritage wagons,
CV158=1 Long Wheelbase Modern wagons.
Class 08 / 09 / 11 BR / LMS & SR Shunters
- Product Code: Class 08 / 09 / 11 BR & SR Shunters
-
£110.00
- Ex Tax: £91.67
