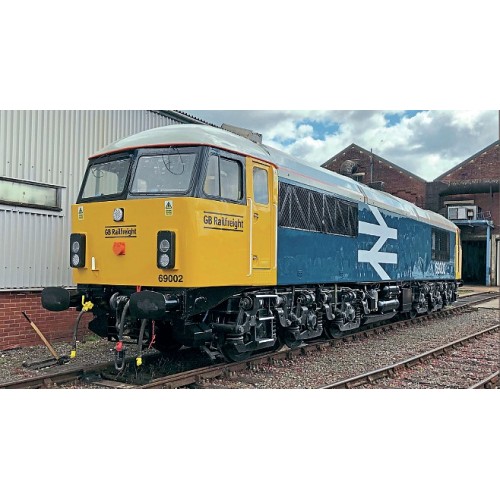

Class 69 Bachmann Plux 22 Model...

Decoders are supplied without speakers....

LEGOMANBIFFO PROJECT....


Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND Decoders.

F0 Lights

F1 Sound On/Off                                                                                                                       CV259-128                      CV419-50

F2 Playable High Horn (Original OR Later Versions).                                                      CV435-128

F3 Playable Low Horn (Original OR Later Versions).                                                      CV443-128

F4 Buffer clash when moving slowly, coupling hook when stationary.                      CV283-128

F5 Playable brake application (when moving) / Brake dump (when stationary.      CV291-80

F6 Driver's door slam (3 X Random Slams.)                                                                     CV299-128

F7 Compressor speed-up.

F8 DriveLock.                                                                                                                            CV267-0

F9 Variable speed flange squeal (speed dependent).                                                    CV323-128

F10 Not Used.

F11 Not Used.

F12 Automatic cooler group fan.                                                                                         CV347-128

F13 Sanders.                                                                                                                             CV355-128

F14 Automatic 'radar hiss'.                                                                                                   CV363-128

F15 Spirax Valves.                                                                                                                   CV315-128

F16 Not used

F17 Windscreen Wash/Wipe.                                                                                               CV387-128

F18 Detonators (Speed Dependant Flash enabled)                                                         CV395-128

F19 Aux 1 (Cab Lights).                                                                                                           CV421-128

F20 Aux 2

F21 Not Used.

F22 Not Used.

F23 Not Used.

F24 Not Used.

F25 Not Used.

F26 Not Used.

F27 Battery Isolator Switch close (Optional) & Cab start up)                                      CV467-128

F28 Cab shut down & Battery Isolator Switch open (Optional)                                   CV475-128
