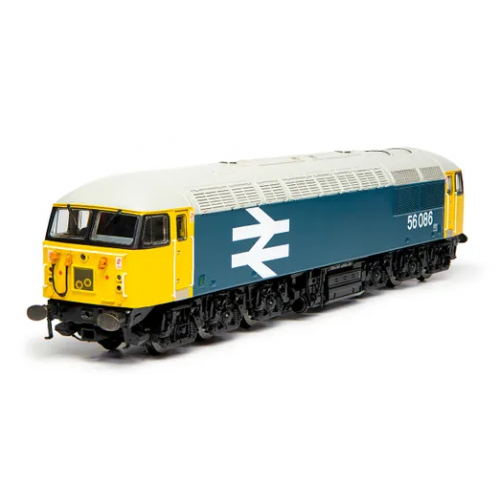

Class 56 (Cavalex)...

Non Sound LokPilots available too, Please note, this model is designed for a EM1 Earth Mover Speaker, there are other options listed though, giving you the choice if smaller, but louder sounds with far less low bass.  see options when ordering.

SEE THE MOVIE:   https://www.youtube.com/watch?v=M1jkw0EAmjY&t=24s

PLEASE NOTE: This model has some unique lighting features.  SEE NOTES BELOW to set them up.

At the Non fan end of the model, please remove the separate roof hatch to fit this decoder & amended the lighting switches: (PLEASE IGNORE WHAT THE CAVALEX BOOKLET SAYS)

There are two blocks of switches, a Block of 5 and a block of four.

1/ Block of 5:  Switch ON 1, 2 & 3.  Then Switch OFF 4 & 5.

2/ Block of 4:  Switch ON 2 & 4.      Then Switch OFF 1 & 3

Both of the Switch Boards are clearly marked ON ---------KE (at the top) the OFF position, has the switch numbers printed on the bottom.

So the top is ON  and the bottom is OFF.

***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU Sound Decoders.

F0   Light Engine Mode (Selects directional lights).     .

F1   Engine Sound on/off.                                                                       CV259=144, CV419=80

F2   Playable Horn  .                .                                                              CV435=128

F3   Playable Horn                                                                                  CV443=128

F4   Buffering Up (When Moving),Coupling Hook (When Stationery).   CV283=110

F5   Manuel Brake (When Moving),Brake Dump (When Stationery).     CV291=128

F6   Drivers Door.                                                                                    CV299=120

F7   Compressor.                                                                                    CV307=160

F8   Drive Lock (Drive Hold).

F9   Automatic Variable speed flange squeel.                                        CV323=160

F10 Guards/Despatch Whistle.                                                              CV331=90

F11 Drivers Safety Device (DSD)                   .                                      CV339=30

F12 Cooler group fans.                                                                           CV363=64,  CV371=64

F13 Sanders.                                                                                         CV355=160

F14 Cab Light On/Off (inc Auto Fade).                                                  CV427=60

F15 Spirax Valves.                                                                                CV315=144

F16 Disposal Air Dump.                                                                        CV379=160

F17 Windscreen Wash/Wipe.                                                                CV387=144

F18 Speed dependant detonators.                                                        CV395=128

F19 Disable Red Tailights.

F20 Parking Mode (Red Light On)

F21 Variable speed flange squeel.                                                        CV323=160

F22 Yard Mode (Headlight Disabled).

F23/F24/F25/F26/F27/F28 Not in Use.

F29 AWS Bell.                                                                                       CV483=100

F30 AWS Horn.                                                                                     CV491=70

At the Non fan end of the model, please remove the separate roof hatch to fit this decoder & amended the lighting switches: (PLEASE IGNORE WHAT THE CAVALEX BOOKLET SAYS)

There are two blocks of switches, a Block of 5 and a block of four.

1/ Block of 5:  Switch ON 1, 2 & 3.  Then Switch OFF 4 & 5.

2/ Block of 4:  Switch ON 2 & 4.      Then Switch OFF 1 & 3

Both of the Switch Boards are clearly marked ON ---------KE (at the top) the OFF position, has the switch numbers printed on the bottom.  So the top is ON  and the bottom is OFF.

ESU LokPilot Functions

F0:   Marker/Running Lights

F2:   Headlight

F3:   Cab Light.

F4:   Parking Mode (All Reds ON)

F5:   Marker/Running Lights OFF

F6:   Fan 1 (on/off)

F7:   Fan 2 (on/off)

F8:   Shunting Mode

F9:   Dynamic Brake

F10: Emergency Brake
