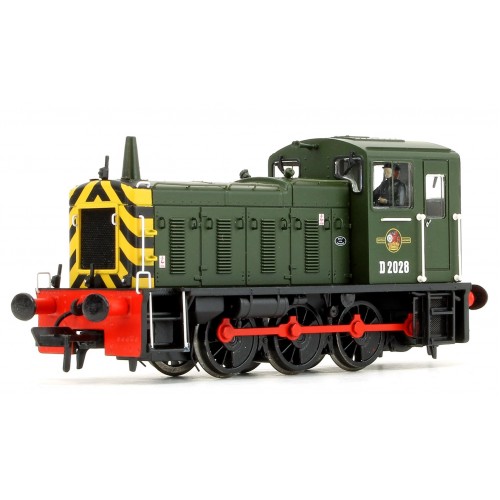

Class 03 & Class 04 Decoder + DriveLock...

BACHMANN MODEL:   6 Pin (Old) & NEXT 18 CORELESS MOTOR VERSIONS...

 (See ordering Options List)..

LEGOMANBIFFO PROJECT

***IMPORTANT: All sound decoders we recommend be sent Insured special delivery***

The story behind the project:  Recorded at Ribble Steam Railway, Available on V4 & V5 ESU Decoders.

Function List  (We suggest you print this off, as you might need it later.).

IMPORTANT:

To alter the overall sounds use CV63 ( 0 to 192 )

To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)

Function Key Layout for ESU/LOKSOUND V5 Sound Decoders.

F0 Lights On/Off.

F1 Sound On/Off. (Engine Start/Stop)

F2 Playable High Horn.

F3 Playable Low Horn.

F4 Buffer Clash when moving/Coupling Hook when stationery.

F5 Playable Brake Application when moving/Air Brake Dump when stationery.

F6 Drivers door slam open/close.

F7 Compressor unloading

F8 Drive Lock (Drive Hold).

F9 Variable Flange/Wheel Squeal only when moving

F10 Despatch Whistle.

F11 Gear Change.

F12 Roof Hatch Open/Close.

F13 Sanders

F14 Vacuum exhauster.

F15 Not Used.

F16 Not Used.

F17 Not Used.

F18 Speed Dependant Detonators.

F19 Aux 1 Cab Light Switch (Works light IF fitted by end user)

F20 Aux 2

LEGOMANBIFFO HELPSHEET:  file:///C:/Users/User/Downloads/v4%20v5%20latest%20helpsheet%20v27-2.pdf

When ordering for the NEW Bachmann 2020 Version with a Coreless motor,

please order the : Next 18 Coreless+Speaker
