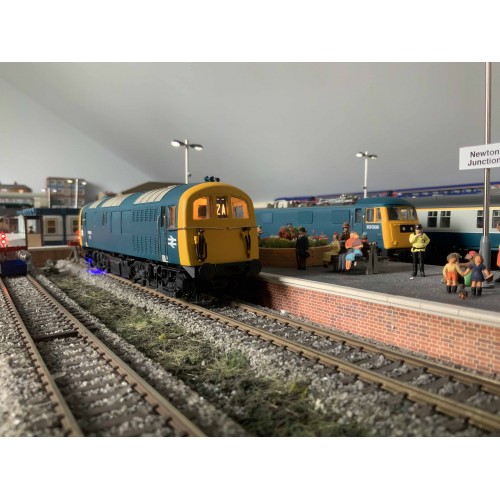

Class 74 (EFE Rail) Electro Diesel ................................
Function List (We suggest you print this off, as you might need it later.).
IMPORTANT:
To alter the overall sounds use CV63 ( 0 to 192 )
To alter individual sounds listed below, you must set the following Indexing CVs (CV31 to 16 and CV32 to 1)
Class 74 Electro Diesel Bo-Bo
Function Key Layout for ESU/LOKSOUND Decoders.
F0 Brings on the directional High Intensity Headlight & Cablights,
F2 Playable high horn
F3 Playable low horn
F4 Buffer clash. Only sounds when moving at slow speeds
F5 Brake application / auto-brake.
F6 Driver's door slam. 1 of 3 played at random.
F7 Compressor
F8 Electric drive on / off.
Can be selected from stationary (with diesel engine off), electric sounds will then play once the throttle is opened. 'Running' sounds come in at a slow speed and change to faster sounds at higher speeds. Can also be selected whilst driving in diesel mode. Then when diesel engine is shut down, electric drive will take over
F9 Automatic flange squeal.
F10 Guards Despatch whistle.
F11 Not Used
F12 Roof fan
F13 Sanders
F14 Exhauster.
F17 3rd Rail Arc Flashes (See Notes Below).
F18 Detonators. A 'three-bang stop'.
F2 Playable high horn
F3 Playable low horn
F4 Buffer clash. Only sounds when moving at slow speeds
F5 Brake application / auto-brake.
F6 Driver's door slam. 1 of 3 played at random.
F7 Compressor
F8 Electric drive on / off.
Can be selected from stationary (with diesel engine off), electric sounds will then play once the throttle is opened. 'Running' sounds come in at a slow speed and change to faster sounds at higher speeds. Can also be selected whilst driving in diesel mode. Then when diesel engine is shut down, electric drive will take over
F9 Automatic flange squeal.
F10 Guards Despatch whistle.
F11 Not Used
F12 Roof fan
F13 Sanders
F14 Exhauster.
F17 3rd Rail Arc Flashes (See Notes Below).
F18 Detonators. A 'three-bang stop'.
F1 Diesel drive on / off. Can be selected from stationary or whilst driving in electric mode.
Turning F14 off and leaving it off will stop the exhausters at any speed
The arc flashes are programmed to Aux3 going one way and Aux4 going the other. The other leg of each LED should go to the blue / common wire. The same LED is used for the detonator flashes.
Class 74 (EFE Rail) Electro Diesel
- Product Code: Class 74 (EFE Rail) Electro Diesel
-
£110.00
- Ex Tax: £91.67
